| 3399開發板驅動支持列表 |
|
system
driver
|
linux4.4+
android6.0 |
linux4.4.52+ android7.1
|
linux4.4+
QT5.6 |
linux4.4.5+ debian9 |
linux4.4.5+ ubuntu16.04 |
| 四路可編程LED燈 |
● |
● |
● |
● |
● |
| 7寸MIPI屏(1024*600) |
● |
● |
● |
● |
● |
| MIPI屏(2048*1536) |
● |
● |
● |
● |
● |
| EDP屏(2048*1536) |
● |
● |
● |
● |
● |
| 背光驅動 |
● |
● |
● |
● |
● |
| PMIC驅動(RK808) |
● |
● |
● |
● |
● |
| 電容觸摸 |
● |
● |
● |
● |
● |
| EMMC驅動 |
● |
● |
● |
● |
● |
| SD卡驅動 |
● |
● |
● |
● |
● |
| 獨立按鍵 |
● |
● |
● |
● |
● |
| ADC驅動 |
● |
● |
● |
● |
● |
| Gsensor |
● |
● |
No need |
No need |
No need |
| 陀螺儀 |
● |
● |
No need |
No need |
No need |
| 指南針 |
● |
● |
No need |
No need |
No need |
| 亮度傳感器 |
● |
● |
No need |
No need |
No need |
| 蜂鳴器驅動 |
● |
● |
● |
● |
● |
| 紅外遙控 |
● |
● |
● |
● |
● |
| 開關機 |
● |
● |
● |
● |
● |
| 休眠喚醒 |
● |
● |
● |
No need |
No need |
| 一路USB HOST2.0驅動 |
● |
● |
● |
● |
● |
| 一路USB HOST3.0驅動 |
● |
● |
● |
● |
● |
| 一路TypeC(OTG)驅動 |
● |
● |
● |
● |
● |
| 音頻(RTL5651) |
● |
● |
● |
● |
● |
| 錄音(RTL5651) |
● |
● |
No need |
● |
● |
| 音頻光纖輸出(SPDIF) |
● |
● |
● |
● |
● |
| SDIO雙頻WIFI/BT4.0 |
● |
● |
● |
● |
● |
| 并口攝相頭驅動 |
● |
● |
No need |
No need |
No need |
| CSI攝相頭驅動 |
● |
● |
Coming soon |
No need |
No need |
| USB口攝相頭驅動 |
● |
● |
● |
● |
● |
| 串口 |
● |
● |
● |
● |
● |
| HDMI2.0 |
● |
● |
Coming soon |
● |
● |
| 3G模塊(3G dongle) |
● |
● |
No need |
No need |
No need |
| 4G模塊(PCIE接口) |
● |
● |
Coming soon |
Coming soon |
Coming soon |
| GPS模塊 |
● |
● |
● |
● |
● |
| 千兆以太網 |
● |
● |
● |
● |
● |
| USB鼠標鍵盤 |
● |
● |
● |
● |
● |
| uboot |
● |
● |
● |
● |
● |
| SD卡脫機更新映像 |
Coming soon |
Coming soon |
Coming soon |
Coming soon |
Coming soon |
|
 |
| 支持Camera Sensor列表 |
| OV13850 |
Camera Sensor |
13Mega |
| OV8825 |
Camera Sensor |
8Mega |
| OV8820 |
Camera Sensor |
8Mega |
| OV8858 |
Camera Sensor |
8Mega |
| OV2685 |
MIPI SOC Sensor |
2Mega |
| GC2155 |
DVP SOC Sensor |
5Mega |
| OV5640 |
DVP SOC Sensor |
5Mega |
| GC2035 |
DVP SOC Sensor |
2Mega |
| HM2057 |
DVP SOC Sensor |
2Mega |
| NT99252 |
DVP SOC Sensor |
2Mega |
| SP2518 |
DVP SOC Sensor |
2Mega |
| OV2659 |
DVP SOC Sensor |
2Mega |
| GC0308 |
DVP SOC Sensor |
0.3Mega |
|
 |
語音2G/3G/4G modem 列表（語音+數據+短信）節選
|
| 網絡制式 |
型號 |
基帶版本 |
廠商 |
廠商（英文） |
RIL庫 |
RIL 版本 |
| WCDMA |
MU509 |
11.813.01.10.00 |
華為 |
HUAWEI |
libreference-ril-mu509.so |
v2.3 |
| WCDMA |
MT6229 |
V3.4 |
環鴻 |
USI |
libreference-ril-mt6229.so |
RIL_4.1_
MT6229_v7.03
|
| WCDMA |
MW100 |
MW100G_BASE_V200R20
|
信可 |
Thinkwill |
libreference-ril-mw100.so |
v1.6 |
| WCDMA |
MI700 |
|
信可 |
Thinkwill |
libreference-ril-mi700.so |
|
| WCDMA |
MI900 |
|
信可 |
Thinkwill |
libreference-ril-mi900.so |
|
| GSM |
M0 |
|
秦創 |
Tsintech |
libreference-ril-sc6610.so |
|
| GSM |
M51 |
|
RDA |
RDA |
libreference-ril-m51.so |
|
| GSM/EDGE |
M50(MT6250) |
|
中一 |
zinnwireless |
libreference-ril-mt6250.so |
|
| GSM |
C66A |
|
智冠 |
wiscrown |
libreference-ril-c66a.so |
|
| WCDMA |
SEW290 |
|
實創興 |
StrongRising |
libreference-ril-sew290.so |
|
| WCDMA |
U5501 |
|
龍尚 |
LONGSUNG |
libreference-ril-u5501.so |
|
|
3G Dongle 列表（數據）節選
|
| 網絡制式 |
型號 |
Model ID |
廠商 |
廠商（英文） |
備注 |
RIL 庫 |
| WCDMA |
W71 |
HSPA USB Dongle |
龍旗 |
Longcheer |
|
libril-rk29-dataonly.so version V2.3.02 |
| EVDO |
E1916 |
E1916 |
網訊 |
Vtion |
|
| EVDO |
EC122 |
EC122 |
華為 |
HUAWEI |
|
| EVDO |
EC1261 |
EC1261 |
華為 |
HUAWEI |
|
| WCDMA |
W72 |
HSPA USB Dongle |
龍旗 |
Longcheer |
|
| WCDMA |
E220 |
E220 |
華為 |
HUAWEI |
|
| WCDMA |
E1820 |
E182E |
華為 |
HUAWEI |
|
| WCDMA |
E182E |
E182E |
華為 |
HUAWEI |
|
| WCDMA |
W567 |
ZD6000 |
禾苗技術 |
|
不支持對該Dongle進行模式切換，只支持它的定制版本
|
| WCDMA |
K80 |
K80 |
摩波彼克 |
MobilePeak |
不支持對該Dongle進行模式切換，只支持它的定制版本
|
| EVDO |
UE800 |
UE800 |
信可 |
Thinkwill |
不支持對該Dongle進行模式切換，只支持它的定制版本
|
| WCDMA |
AL300 |
HSPA Data Card |
阿爾卡特 |
Alcatel |
|
| WCDMA |
E180 |
E180 |
華為 |
HUAWEI |
|
| WCDMA |
C339 |
C339 |
BandLuxe |
BandLuxe |
|
| WCDMA |
Longtail WU-872 |
MF110 |
中興 |
ZTE |
|
| WCDMA |
MF190 |
MF190 |
中興 |
ZTE |
該dognle型號有多種PID 0x2000/0x0124/0x0117/0x2003/0x0033
|
| TD-WCDMA |
ET128 |
ET128 |
華為 |
HUAWEI |
|
| WCDMA |
ALCATEL |
HSPA Data Card |
阿爾卡特 |
Alcatel |
TCL提供的Dongle |
|
 |
 |
 |
 |

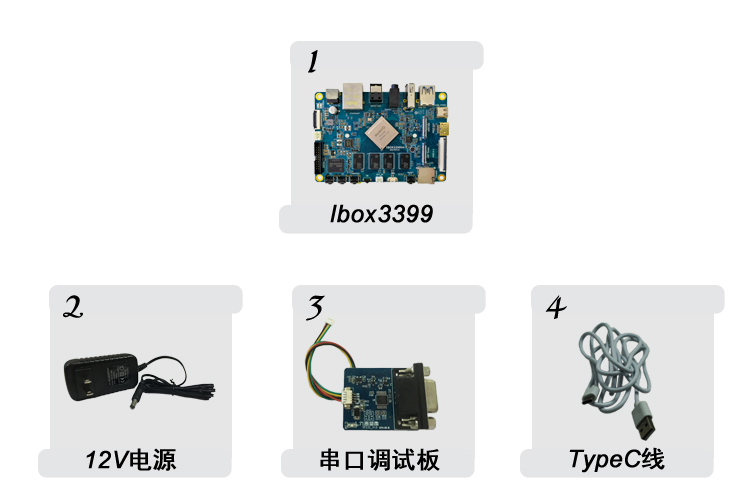

| 1. |
ibox3399 |
| 2. |
電源適配器 |
| 3. |
串口調試板 |
| 4. |
TypeC延長線 |
| 5. |
開發資料(從網盤下載,下載鏈接見下文) |
|
 |
|
|
| 百度網盤： |
pan.baidu.com/s/1dEFIomt 密碼：j0gt |
| 谷歌網盤： |
drive.google.com/open?id=0B-yeuBKFw_hMWERLcW5XWXR3Mkk |
| 維基教程： |
x.9tripod.com/wiki/zh/index.php/%E9%A6%96%E9%A1%B5 |
| Gitlab： |
x.9tripod.com/wiki/zh/index.php/Gitlab |
|
 |
 |
 |
